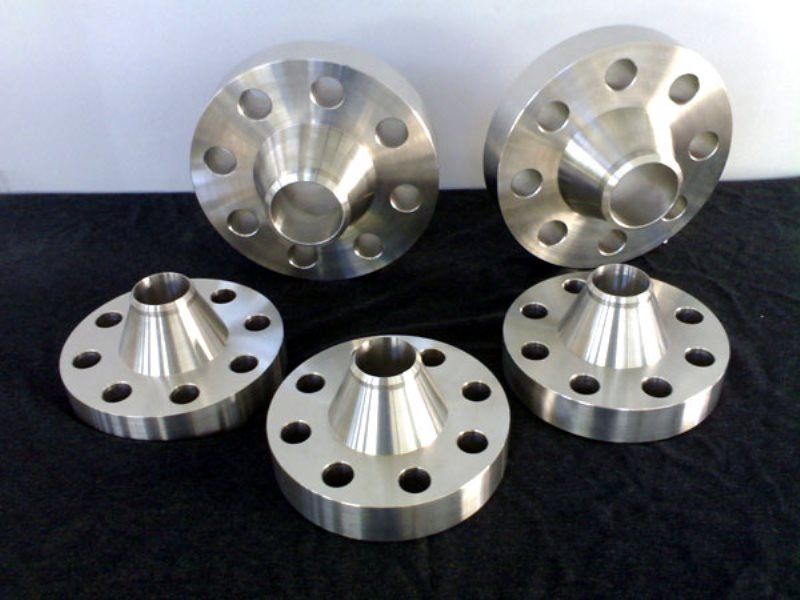

Custom Inconel 625 Parts Manufacturing
Precision CNC Machining for High-Performance Applications
Expert manufacturing of custom Inconel 625 parts with superior corrosion resistance, high-temperature strength, and exceptional mechanical properties for demanding aerospace, marine, and chemical processing applications.
- •High-temperature resistance up to 1800°F
- •Excellent corrosion resistance
- •Superior strength and toughness
- •Precision CNC machining
Inconel 625 Overview
Inconel 625 is a nickel-chromium-molybdenum alloy with exceptional corrosion resistance and high-temperature strength. This superalloy combines excellent mechanical properties with outstanding resistance to oxidation and carburization, making it ideal for the most demanding applications.
- •Nickel-chromium-molybdenum superalloy
- •Outstanding corrosion resistance
- •High-temperature strength retention
- •Excellent weldability and fabricability
Material Properties
Chemical Composition
- •Nickel: ≥58.0%
- •Chromium: 20.0-23.0%
- •Molybdenum: 8.0-10.0%
- •Niobium + Tantalum: 3.15-4.15%
- •Iron: ≤5.0%
- •Carbon: ≤0.10%
- •Manganese: ≤0.50%
- •Silicon: ≤0.50%
- •Phosphorus: ≤0.015%
- •Sulfur: ≤0.015%
- •Aluminum: ≤0.40%
- •Titanium: ≤0.40%
Mechanical Properties
- •Tensile Strength: 120-160 ksi (827-1103 MPa)
- •Yield Strength: 60-120 ksi (414-827 MPa)
- •Elongation: 30-50%
- •Hardness (Rockwell B): 85-95 HRB
- •Modulus of Elasticity: 29.8 x 10³ ksi (205 GPa)
Physical Properties
- •Density: 0.305 lb/in³ (8.44 g/cm³)
- •Melting Point: 2350-2460°F (1290-1350°C)
- •Thermal Conductivity: 6.2 BTU/hr·ft·°F (10.7 W/m·K)
- •Specific Heat: 0.106 BTU/lb·°F (0.444 J/g·K)
- •Coefficient of Thermal Expansion: 7.1 x 10⁻⁶ in/in/°F (12.8 x 10⁻⁶ m/m/°K)
Manufacturing Processes
Our advanced manufacturing capabilities ensure precise production of Nickel Alloy 625 parts with tight tolerances and superior surface finishes.
CNC Machining
Precision CNC turning, milling, and drilling with specialized tooling for nickel alloys
Capabilities:
- •Multi-axis machining
- •Tight tolerances (±0.001")
- •Superior surface finishes
- •Complex geometries
Heat Treatment
Solution annealing and precipitation hardening for optimal mechanical properties
Capabilities:
- •Solution annealing at 2150°F
- •Rapid cooling
- •Stress relief treatments
- •Property optimization
Welding & Joining
Expert welding techniques including TIG, MIG, and resistance welding
Capabilities:
- •TIG welding
- •MIG welding
- •Resistance welding
- •Post-weld heat treatment
Surface Finishing
Advanced surface treatments for enhanced performance and appearance
Capabilities:
- •Electropolishing
- •Passivation
- •Coating applications
- •Quality inspection
Applications
Nickel Alloy 625 is widely used in industries requiring exceptional corrosion resistance and high-temperature performance.
Aerospace & Defense
- • Jet engine components
- • Rocket motor cases
- • Aircraft structural parts
- • Exhaust systems
Chemical Processing
- • Reactor vessels
- • Heat exchangers
- • Piping systems
- • Valves and fittings
Marine & Offshore
- • Subsea equipment
- • Propeller shafts
- • Seawater handling systems
- • Offshore platform components
Power Generation
- • Gas turbine components
- • Nuclear reactor parts
- • Steam turbine blades
- • Heat recovery systems
Why Choose Nickel Alloy 625
Nickel Alloy 625 offers exceptional performance characteristics for demanding applications.
Superior Corrosion Resistance
Excellent resistance to pitting, crevice corrosion, and stress corrosion cracking
High-Temperature Strength
Maintains mechanical properties at temperatures up to 1800°F (982°C)
Outstanding Weldability
Can be welded using various techniques without post-weld heat treatment
Excellent Fabricability
Good formability and machinability for complex part geometries
Quality Assurance
Comprehensive quality control ensures every Nickel Alloy 625 part meets the highest standards.
Frequently Asked Questions
Is nickel 625 the same as Inconel 625?
What is alloy 625 material?
What is the melting point of Inconel 625?
What is the temperature limit for 625 alloy?
What is the difference between Grade 1 and Grade 2 alloy 625?
Ready to Start Your Nickel Alloy 625 Project?
Get a free quote for your custom Nickel Alloy 625 parts. Our experts will help you optimize your design for manufacturing.
